575nm Dimmable 3.2mm High Brightness SMD LED 25mcd 1206 Green SMD LED
Product Description of 1206 SMD LED
Absolute Maximum rating of 1206 SMD LED:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 1206 SMD LED:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | 566 | - | 576 | nm |
| Forward voltage | If=20mA | Vf | 1.8 | - | 2.4 | v |
| Luminous intensity | If=20mA | Iv | 25 | - | 80 | mcd |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | 140 | | Deg |
| Resverse current | Vr=5v | Ir | | | 10 | mA |

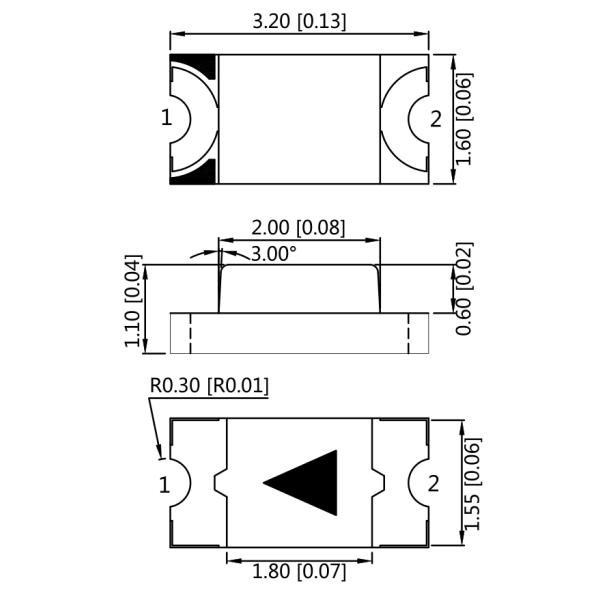

Outline dimension of 1206 SMD LED:
Feature of 1206 SMD LED:
3.2mmx1.6mm SMD LED,1,1mm thickness
Avaliable color:red yellow blue green RGB etc.
Low power consumption
Wide view angle
Long lifespan
Package:3000pcs/reel
ROHS Compliant
Application of 1206 SMD LED:
Ideal for backlight and indicator
Various colors and lens types available
Related Products
Hot sales
Packaging & Shipping
PACKAGE:
Standard export carton packing. 3000pcs/bag 30bags/box
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Information
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
MH provides excellent sales service and strong technical supports to our customers.
Our Advantages
High capacity
12000000pcs per day
High standard
Multiples sets of testing equipment and passed SGS authoristaion
OEM &ODM
Can be designed and produced according to customer requirement
Professional service team
Team with 20 years of management and production experience
FAQ
Why choose us?
1,Your inquiry for our products or prices will be replied in 24 hours
2,Protection of your sales area,ideas of design and all your private in formation.
3,We guarantee both quality and service regardless of your order qty.
4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.
5,If there is LED failure, how can you support?
A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!
6,Would you offer free samples?
A:Yes, We would offer free samples
7,What about the lead time?
A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
